230017 Torus v1.0



40,31

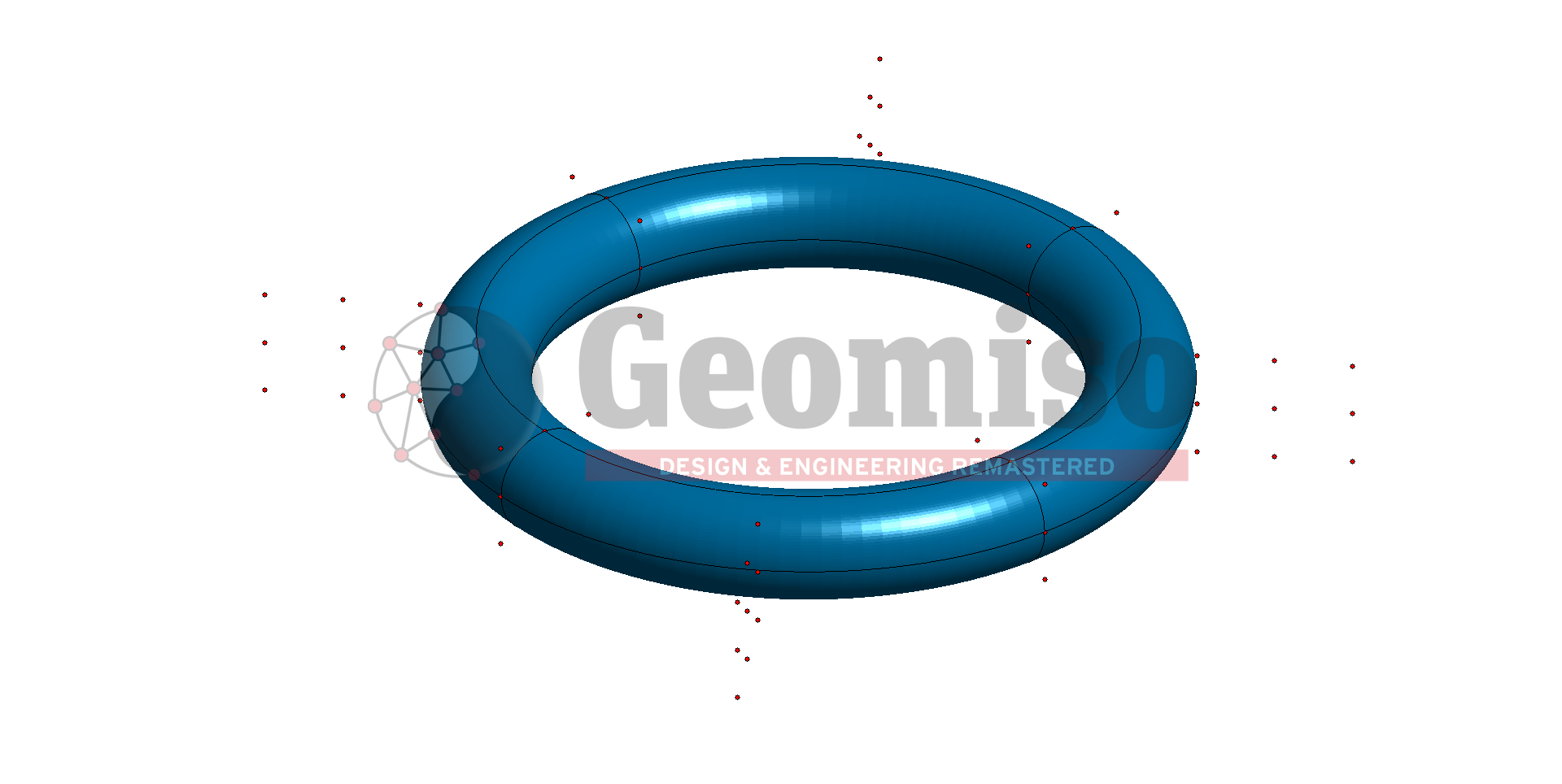

This is the coarsest NURBS solid model of a torus with radius (R1) and section radius (R2).

Categories: ,
Tags: ,

Description

This is the coarsest NURBS solid model of a torus with radius (R1) and section radius (R2).

Specifications
Product ID 230017
Published June 17, 2018
Size 1.20 MB
Product Type Model
Model NURBS
Degree (ξ) 2
Degree (η) 1
Degree (ζ) 2
Control Points (ξ) 9
Control Points (η) 2
Control Points (ζ) 9
Control Points 162
Knot Spans (ξ) 4
Knot Spans (η) 1
Knot Spans (ζ) 4
Elements 16

Files

This pack includes all the following files, which contain the control variables and the knot vectors required to produce the NURBS model using Geomiso or any other NURBS-based software.

  •  PDF file (230017 Torus Description.pdf, 60 KB)
  •  Microsoft Excel file (230017 Torus Control Variables.xlsx, 19 KB)
  •  Microsoft WordPad file (230017 Torus Control Variables.rtf, 9 KB)
  •  Microsoft Notepad file (230017 Torus Control Variables.txt, 9 KB)
  •  Images (22 png files, 1920×964 pixels, 1.10 MB)
