220015 Scalene Triangle (Cubic) v1.0


2,82

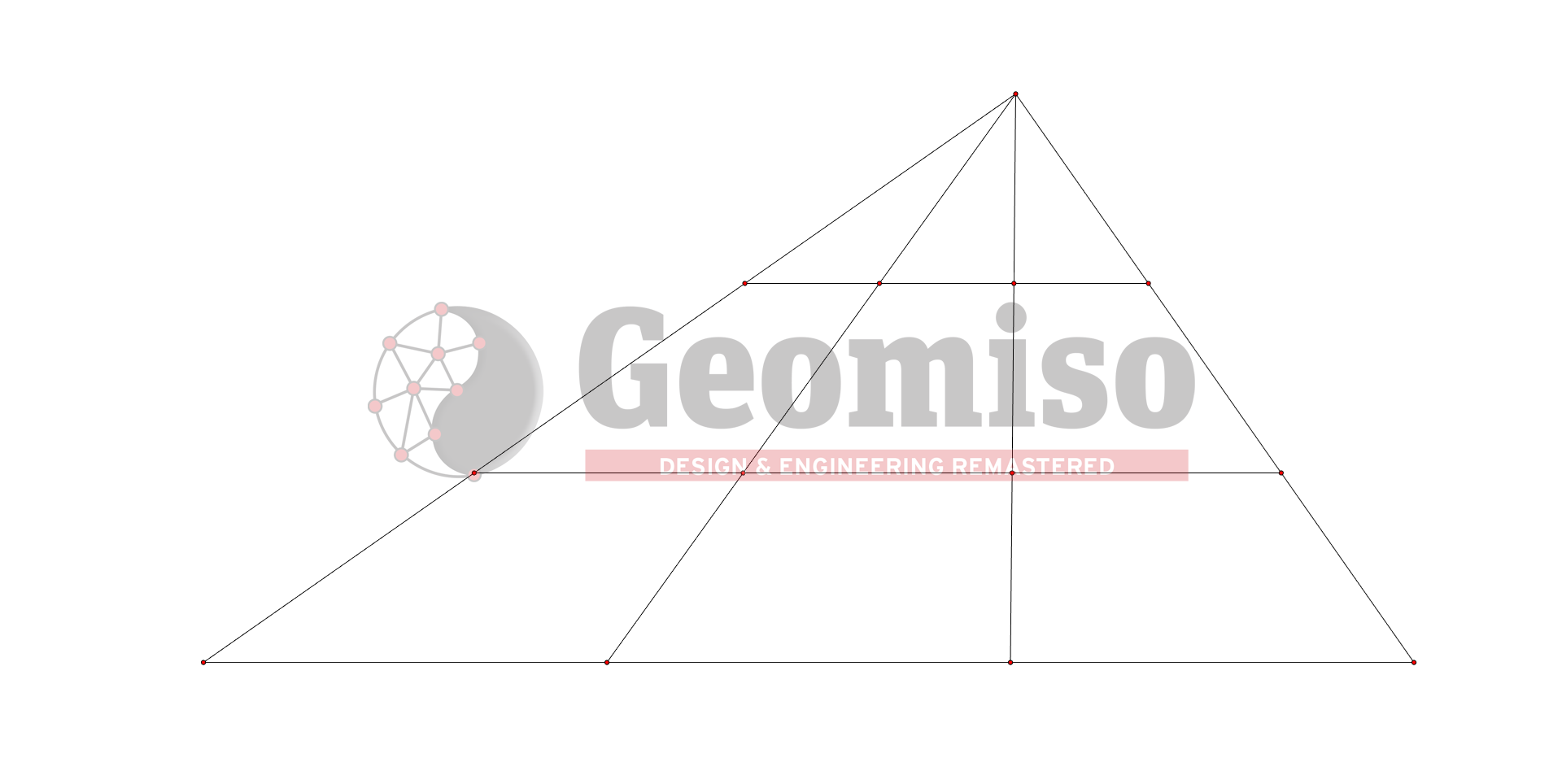

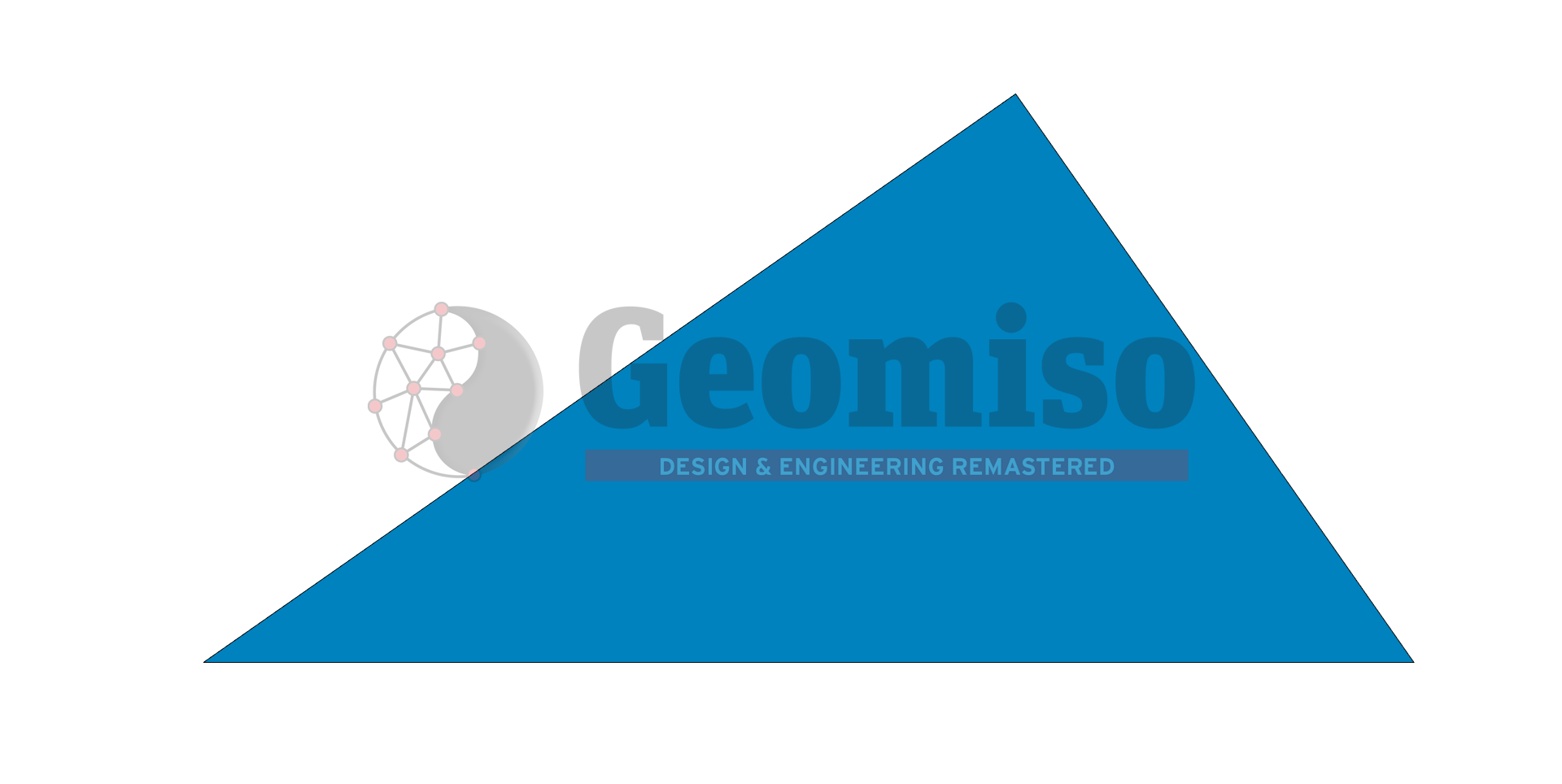

This is the coarsest cubic NURBS surface model of a scalene triangle (L, Θ1, Θ2).

Κατηγορίες: , Ετικέτες: , , ,

Περιγραφή

This is the coarsest cubic NURBS surface model of a scalene triangle (L, Θ1, Θ2).

Specifications
Product ID 220015
Published June 12, 2018
Size 220 KB
Product Type Model
Model NURBS
Degree (ξ) 3
Degree (η) 3
Control Points (ξ) 4
Control Points (η) 4
Control Points 16
Knot Spans (ξ) 1
Knot Spans (η) 1
Elements 1

Files

This pack includes all the following files, which contain the control variables and the knot vectors required to produce the NURBS model using Geomiso or any other NURBS-based software.

  •  PDF file (220015 Scalene Triangle (Cubic) Description.pdf, 99 KB)
  •  Microsoft Excel file (220015 Scalene Triangle (Cubic) Control Variables.xlsx, 13 KB)
  •  Microsoft WordPad file (220015 Scalene Triangle (Cubic) Control Variables.rtf, 3 KB)
  •  Microsoft Notepad file (220015 Scalene Triangle (Cubic) Control Variables.txt, 2 KB)
  •  Images (4 png files, 1920×964 pixels, 102 KB)
