220013 Scalene Triangle (Linear) v1.0


2,01

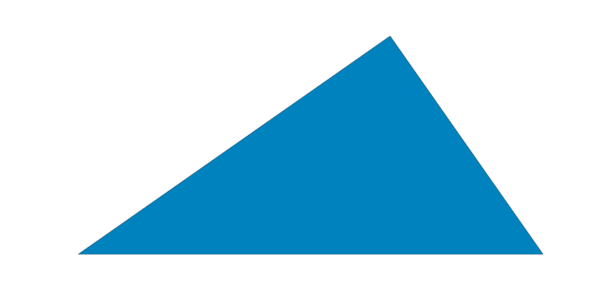

This is the coarsest linear NURBS surface model of a scalene triangle (L, Θ1, Θ2).

Description

This is the coarsest linear NURBS surface model of a scalene triangle (L, Θ1, Θ2).

Specifications
Product ID 220013
Published June 12, 2018
Size 203 KB
Product Type Model
Model NURBS
Degree (ξ) 1
Degree (η) 1
Control Points (ξ) 2
Control Points (η) 2
Control Points 4
Knot Spans (ξ) 1
Knot Spans (η) 1
Elements 1

Files

This pack includes all the following files, which contain the control variables and the knot vectors required to produce the NURBS model using Geomiso or any other NURBS-based software.

  •  PDF file (220013 Scalene Triangle (Linear) Description.pdf, 99 KB)
  •  Microsoft Excel file (220013 Scalene Triangle (Linear) Control Variables.xlsx, 11 KB)
  •  Microsoft WordPad file (220013 Scalene Triangle (Linear) Control Variables.rtf, 1 KB)
  •  Microsoft Notepad file (220013 Scalene Triangle (Linear) Control Variables.txt, 1 KB)
  •  Images (4 png files, 1920×964 pixels, 90 KB)
