220022 Plate with a hole (Quarter) v1.0


7,25

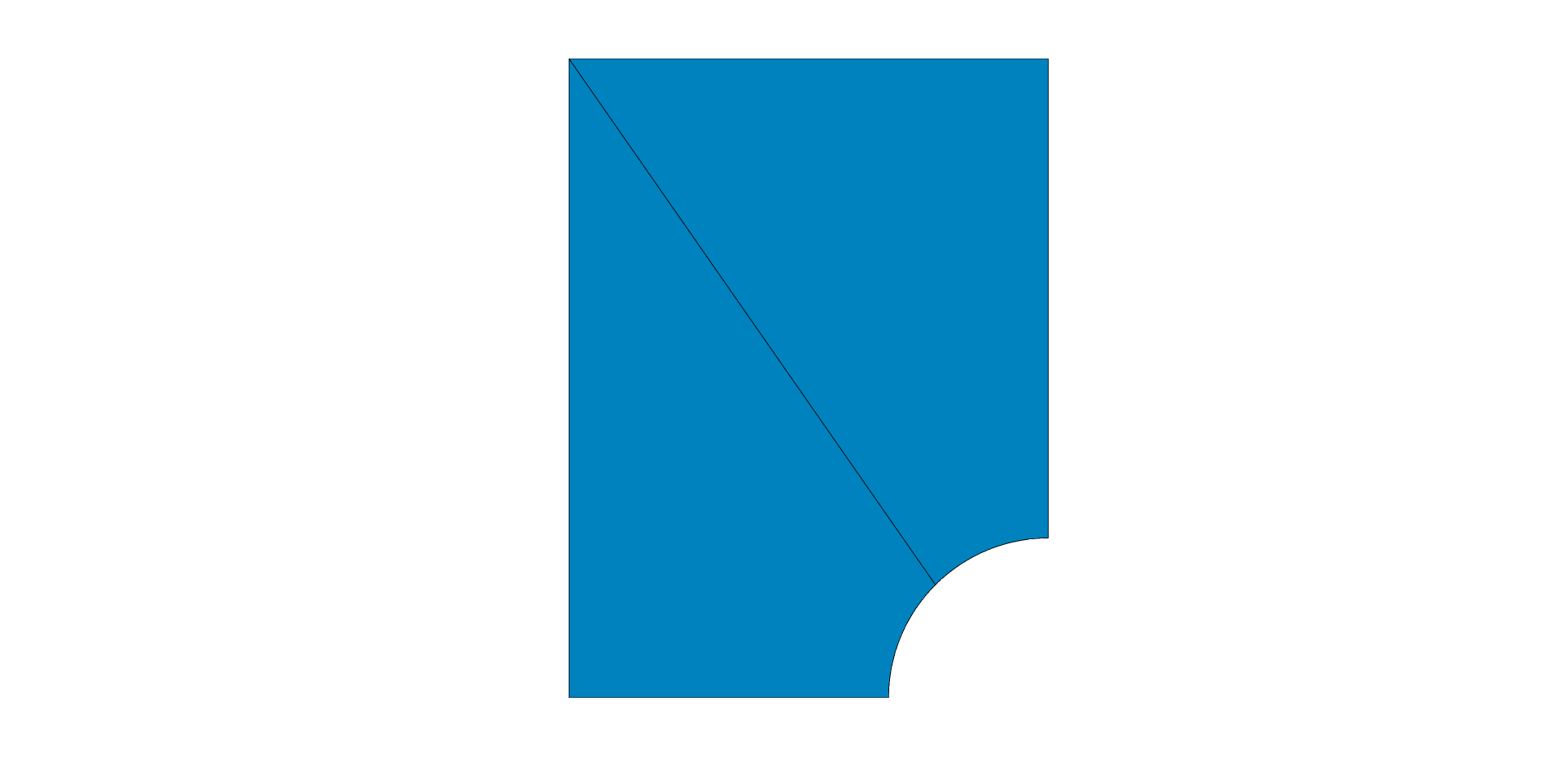

This is the coarsest NURBS surface model of a quarter of a rectangular plate (2L1x2L2) with a circular hole in the center (radius R, L1>R, L2>R).

Categories: ,
Tags: , ,

Description

This is the coarsest NURBS surface model of a quarter of a rectangular plate (2L1x2L2) with a circular hole in the center (radius R, L1>R, L2>R).

Specifications
Product ID 220022
Published June 12, 2018
Size 146 KB
Product Type Model
Model NURBS
Degree (ξ) 2
Degree (η) 1
Control Points (ξ) 4
Control Points (η) 2
Control Points 8
Knot Spans (ξ) 2
Knot Spans (η) 1
Elements 2

Files

This pack includes all the following files, which contain the control variables and the knot vectors required to produce the NURBS model using Geomiso or any other NURBS-based software.

  •  PDF file (220022 Plate with a hole (Quarter) Description.pdf, 60 KB)
  •  Microsoft Excel file (220022 Plate with a hole (Quarter) Control Variables.xlsx, 12 KB)
  •  Microsoft WordPad file (220022 Plate with a hole (Quarter) Control Variables.rtf, 1 KB)
  •  Microsoft Notepad file (220022 Plate with a hole (Quarter) Control Variables.txt, 1 KB)
  •  Images (4 png files, 1920×964 pixels, 72 KB)
