330008 Conical Frustum v1.0


5,64

This is the coarsest NURBS solid model of a conical frustum.

Categories: ,
Tags: , ,

Description

This is the coarsest NURBS solid model of a conical frustum.

Specifications
Product ID 330008
Published June 18, 2018
Size 535 KB
Product Type Image
Model NURBS
Degree (ξ) 1
Degree (η) 1
Degree (ζ) 2
Control Points (ξ) 2
Control Points (η) 2
Control Points (ζ) 9
Control Points 36
Knot Spans (ξ) 1
Knot Spans (η) 1
Knot Spans (ζ) 4
Elements 4

Files

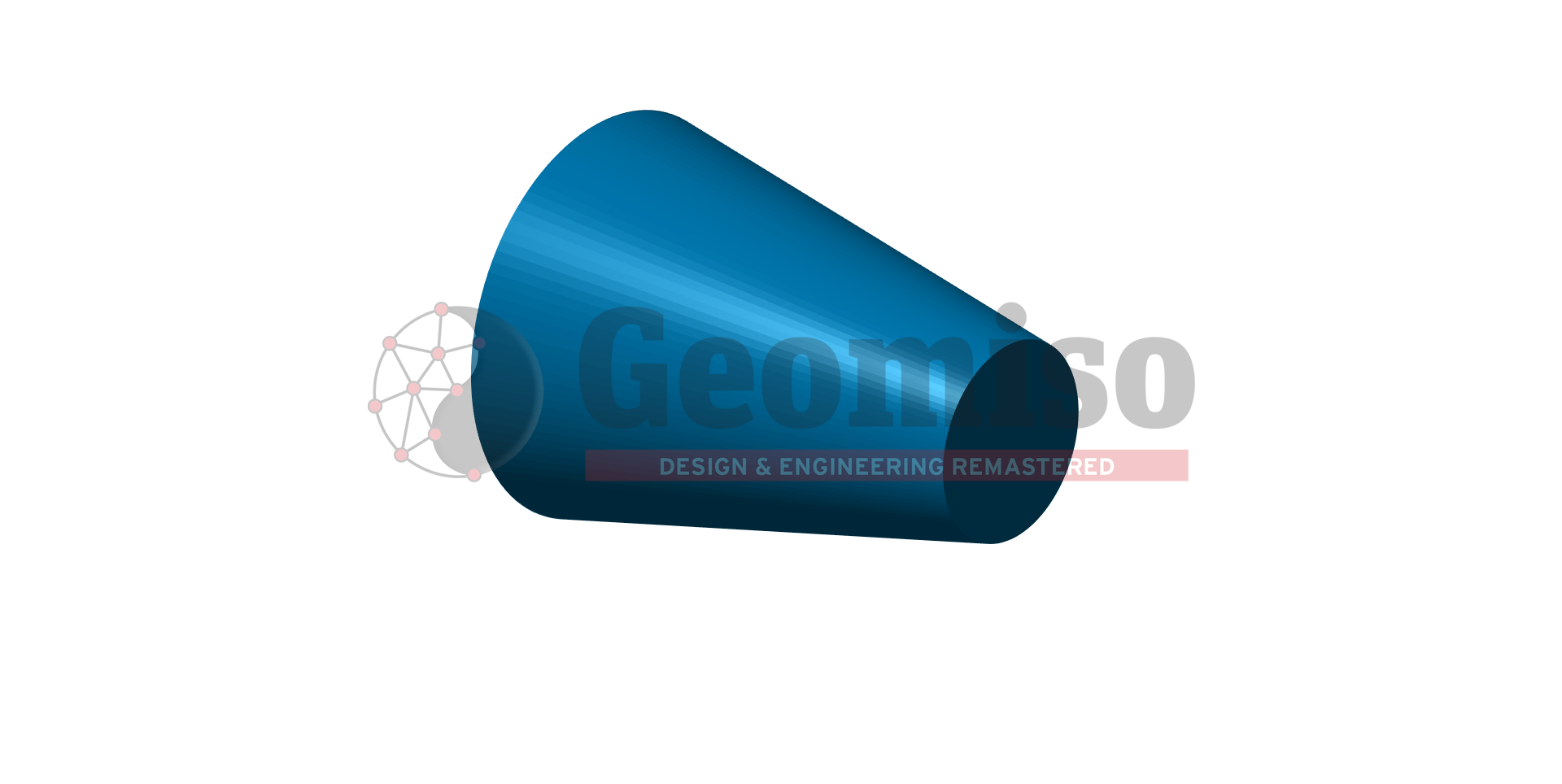

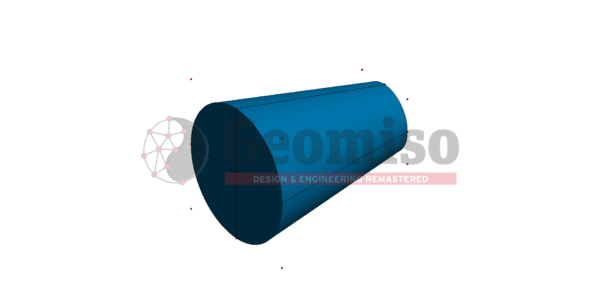

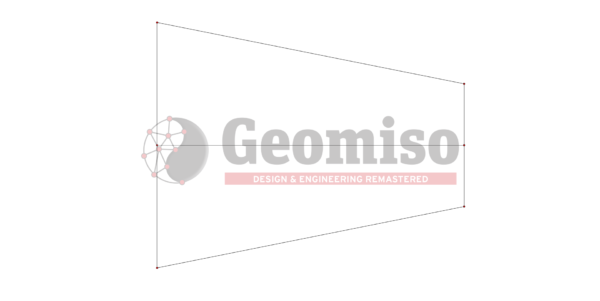

This pack includes all the following images of the NURBS model obtained using Geomiso, which depict the geometry, the control net, the control points and the knot lines.
