220001 Square (Linear) v1.0



0,80

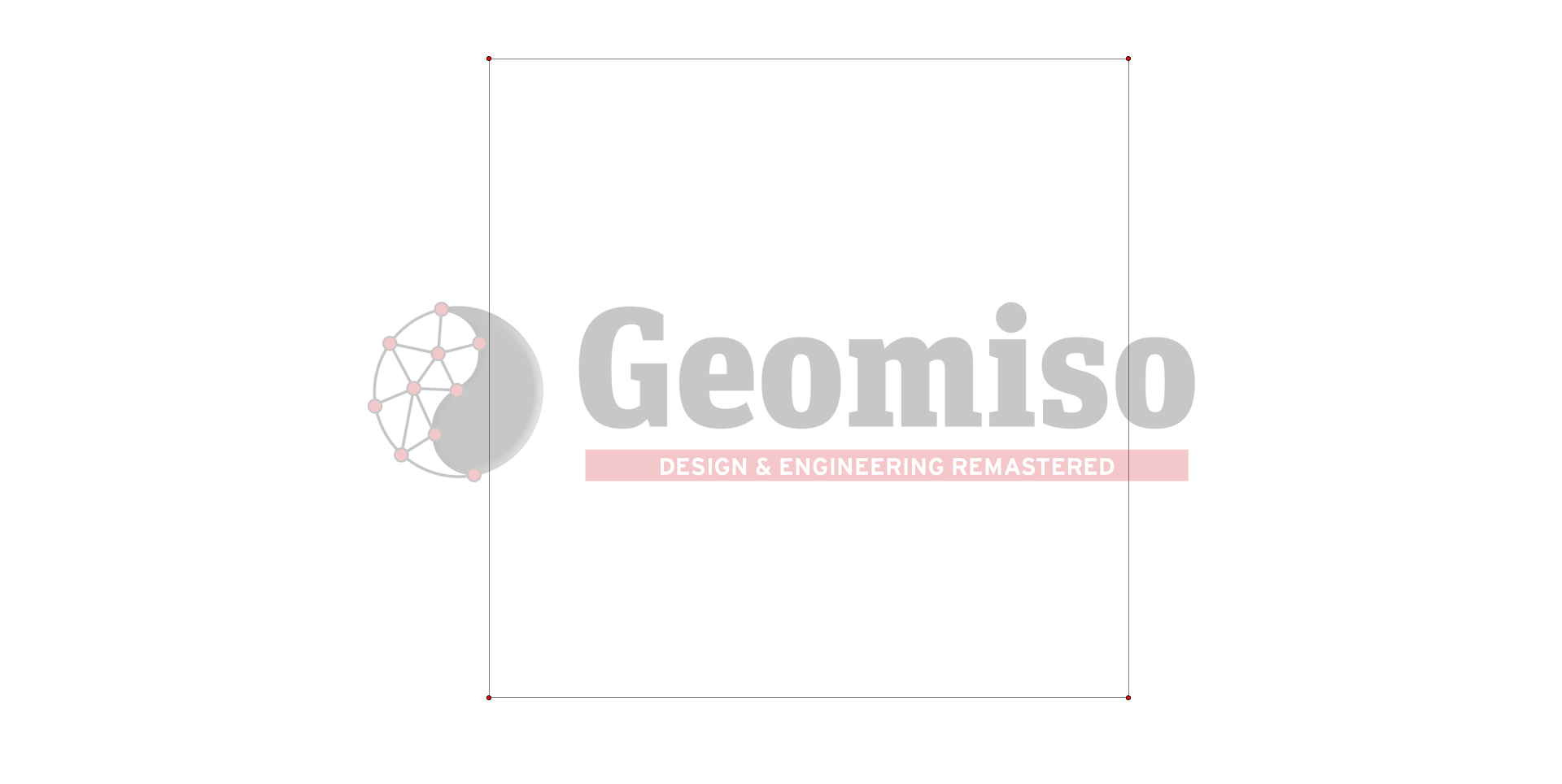

This is the coarsest linear NURBS surface model of a square (LxL).

Categories: ,
Tags: , ,

Description

This is the coarsest linear NURBS surface model of a square (LxL).

Specifications
Product ID 220001
Published June 12, 2018
Size 104 KB
Product Type Model
Model NURBS
Degree (ξ) 1
Degree (η) 1
Control Points (ξ) 2
Control Points (η) 2
Control Points 4
Knot Spans (ξ) 1
Knot Spans (η) 1
Elements 1

Files

This pack includes all the following files, which contain the control variables and the knot vectors required to produce the NURBS model using Geomiso or any other NURBS-based software.

  •  PDF file (220001 Square (Linear) Description.pdf, 60 KB)
  •  Microsoft Excel file (220001 Square (Linear) Control Variables.xlsx, 11 KB)
  •  Microsoft WordPad file (220001 Square (Linear) Control Variables.rtf, 1 KB)
  •  Microsoft Notepad file (220001 Square (Linear) Control Variables.txt, 1 KB)
  •  Images (4 png files, 1920×964 pixels, 32 KB)
