320008 Annulus v1.0



3,22

This is the coarsest NURBS surface model of an annulus.

Categories: ,
Tags: ,

Description

This is the coarsest NURBS surface model of an annulus.

Specifications
Product ID 320008
Published June 17, 2018
Size 153 KB
Product Type Image
Model NURBS
Degree (ξ) 2
Degree (η) 1
Control Points (ξ) 9
Control Points (η) 2
Control Points 18
Knot Spans (ξ) 4
Knot Spans (η) 1
Elements 4

Files

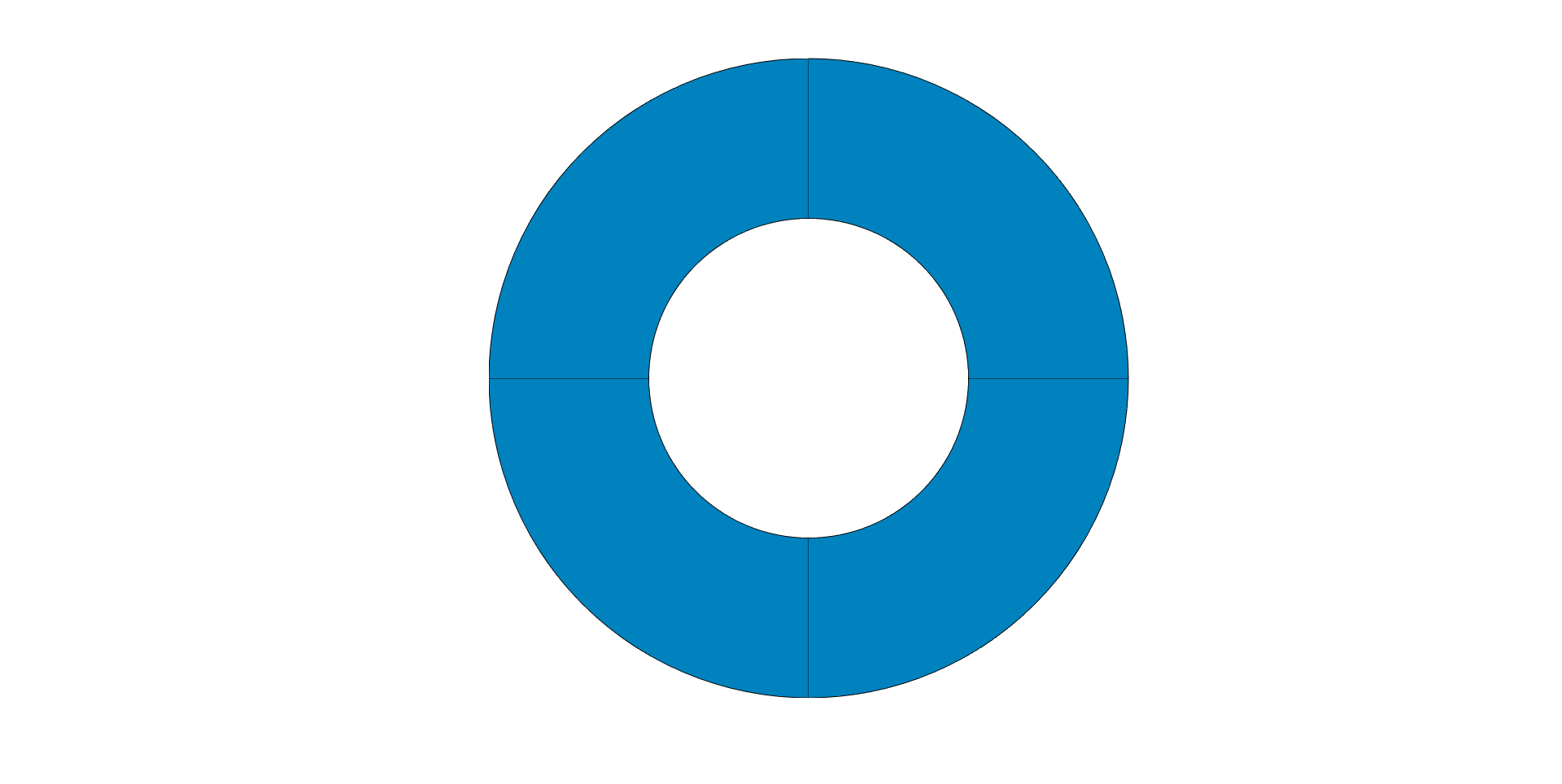

This pack includes all the following images of the NURBS model obtained using Geomiso, which depict the geometry, the control net, the control points and the knot lines.
