230013 Cylinder v1.0



8,05

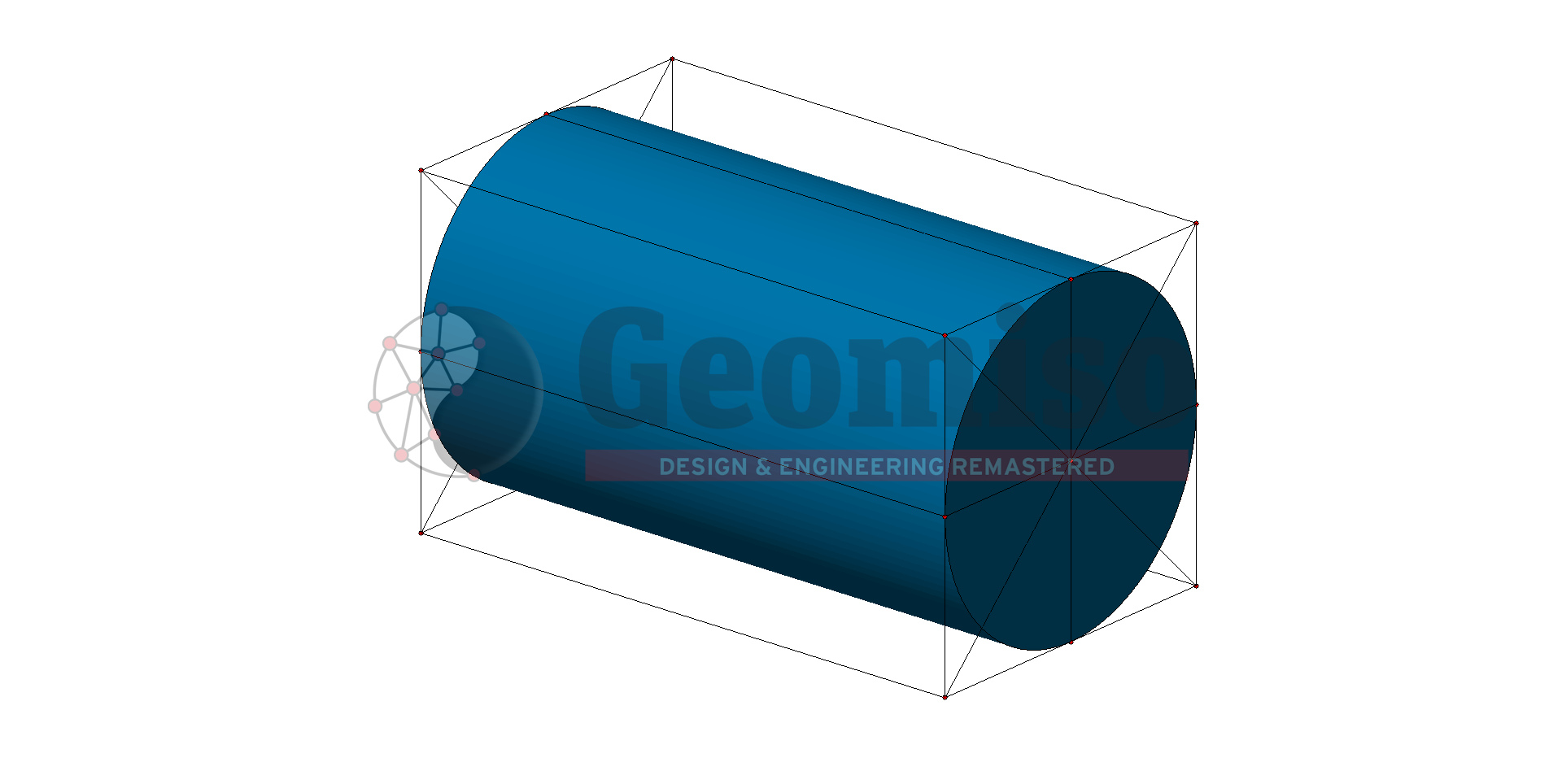

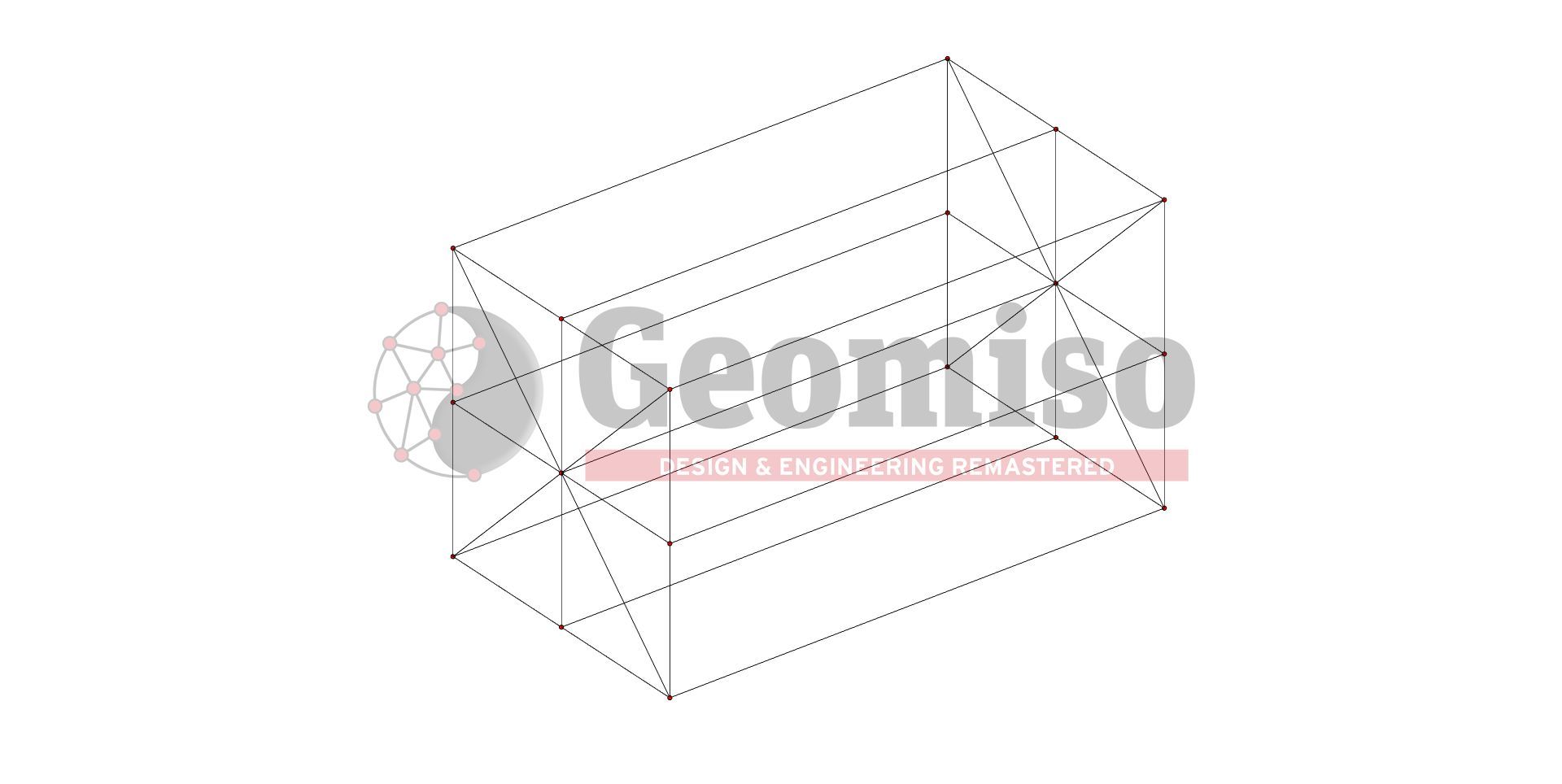

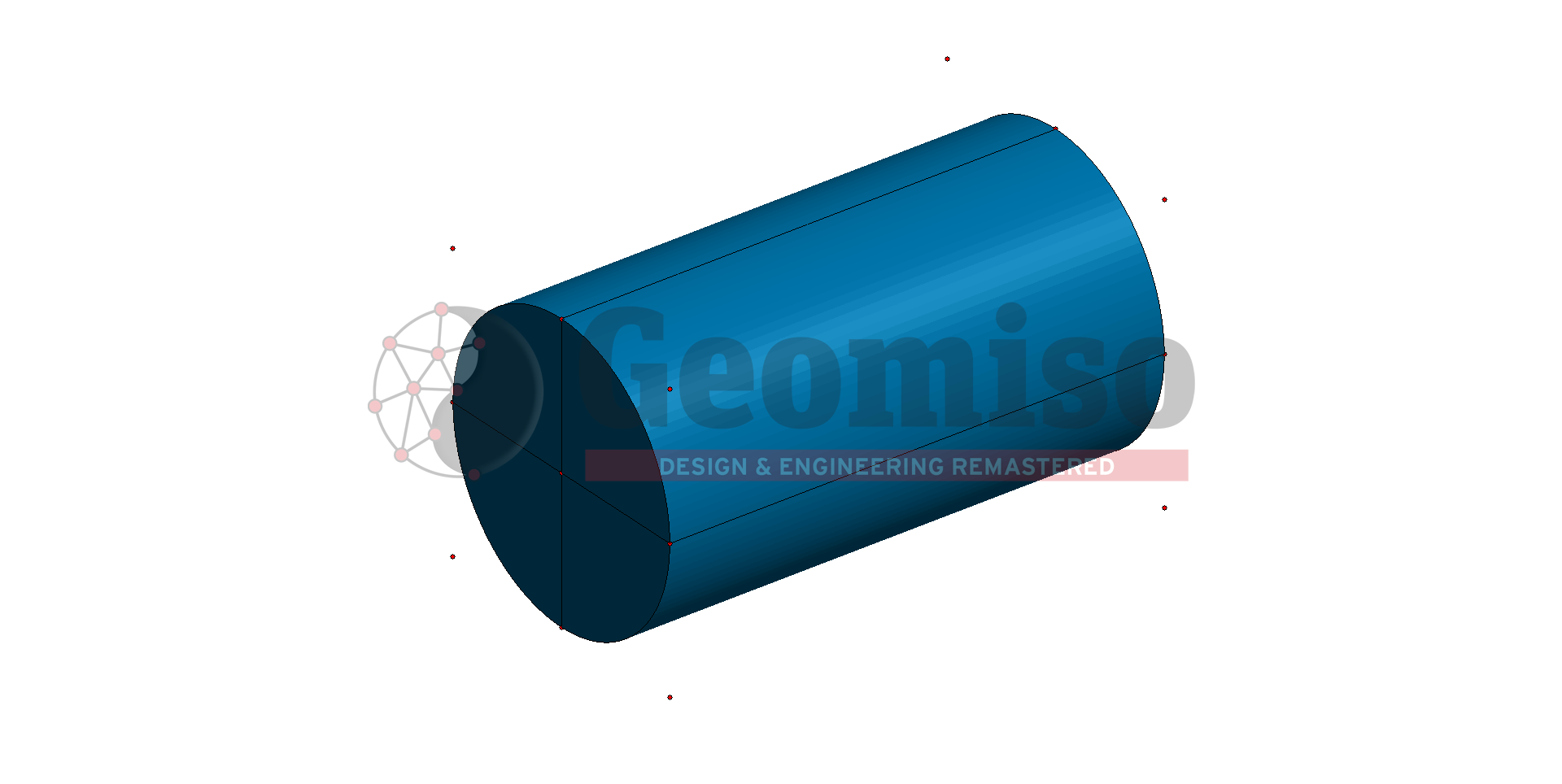

This is the coarsest NURBS solid model of a cylinder with radius (R) and length (L).

Categories: ,
Tags: ,

Description

This is the coarsest NURBS solid model of a cylinder with radius (R) and length (L).

Specifications
Product ID 230013
Published June 17, 2018
Size 591 KB
Product Type Model
Model NURBS
Degree (ξ) 1
Degree (η) 1
Degree (ζ) 2
Control Points (ξ) 2
Control Points (η) 2
Control Points (ζ) 9
Control Points 36
Knot Spans (ξ) 1
Knot Spans (η) 1
Knot Spans (ζ) 4
Elements 4

Files

This pack includes all the following files, which contain the control variables and the knot vectors required to produce the NURBS model using Geomiso or any other NURBS-based software.

  •  PDF file (230013 Cylinder Description.pdf, 60 KB)
  •  Microsoft Excel file (230013 Cylinder Control Variables.xlsx, 13 KB)
  •  Microsoft WordPad file (230013 Cylinder Control Variables.rtf, 2 KB)
  •  Microsoft Notepad file (230013 Cylinder Control Variables.txt, 2 KB)
  •  Images (22 png files, 1920×964 pixels, 514 KB)
