230010 Square Pyramid (Linear) v1.0


3,22

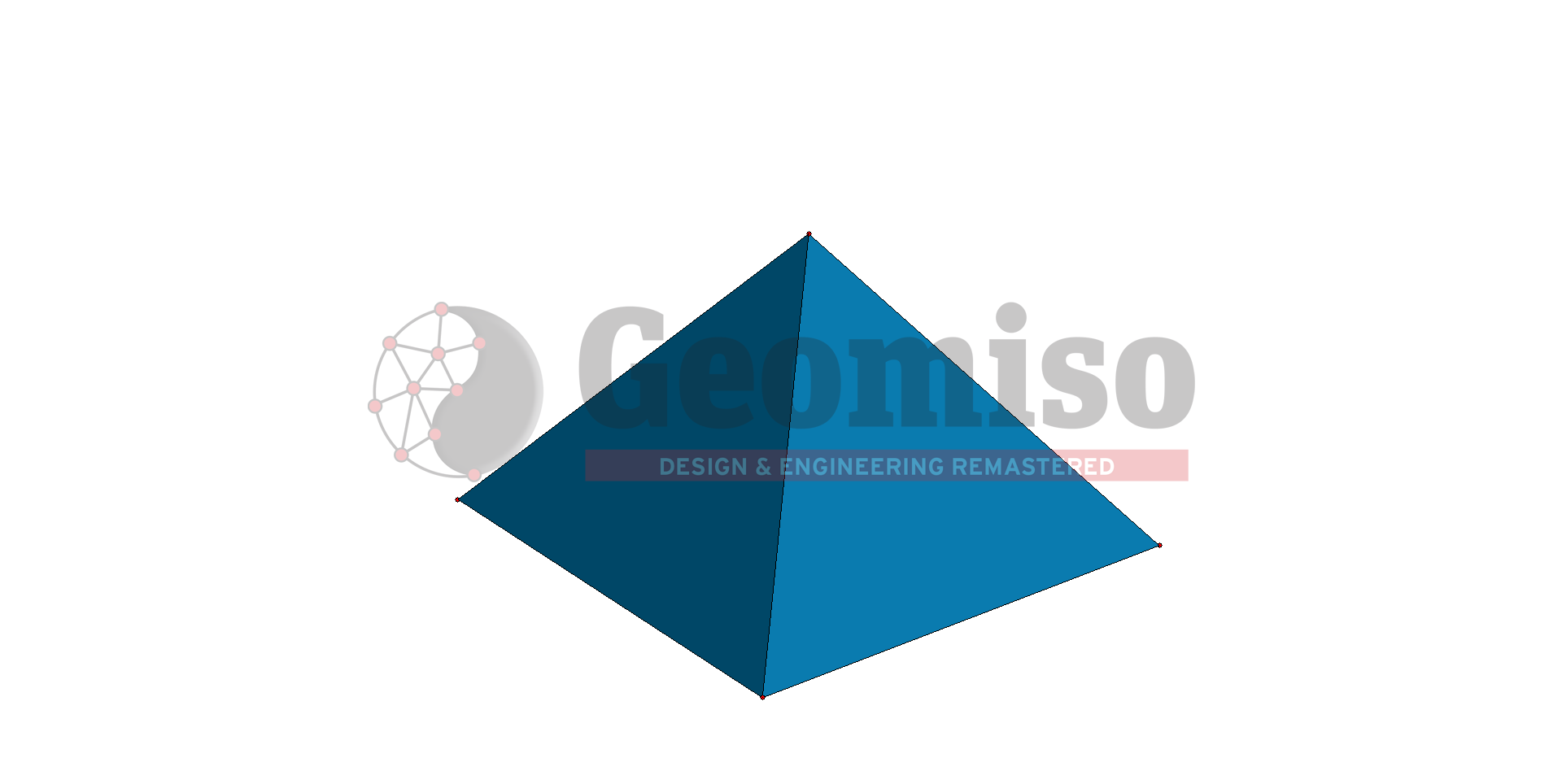

This is the coarsest linear NURBS solid model of a regular pyramid with square base (edge L) and height (H).

Categories: ,
Tags: , , ,

Description

This is the coarsest linear NURBS solid model of a regular pyramid with square base (edge L) and height (H).

Specifications
Product ID 230010
Published June 17, 2018
Size 421 KB
Product Type Model
Model NURBS
Degree (ξ) 1
Degree (η) 1
Degree (ζ) 1
Control Points (ξ) 2
Control Points (η) 2
Control Points (ζ) 2
Control Points 8
Knot Spans (ξ) 1
Knot Spans (η) 1
Knot Spans (ζ) 1
Elements 1

Files

This pack includes all the following files, which contain the control variables and the knot vectors required to produce the NURBS model using Geomiso or any other NURBS-based software.

  •  PDF file (230010 Square Pyramid (Linear) Description.pdf, 60 KB)
  •  Microsoft Excel file (230010 Square Pyramid (Linear) Control Variables.xlsx, 11 KB)
  •  Microsoft WordPad file (230010 Square Pyramid (Linear) Control Variables.rtf, 1 KB)
  •  Microsoft Notepad file (230010 Square Pyramid (Linear) Control Variables.txt, 1 KB)
  •  Images (22 png files, 1920×964 pixels, 347 KB)

Reviews

There are no reviews yet.

Be the first to review “230010 Square Pyramid (Linear) v1.0
 ”
