220006 Rectangle (Cubic) v1.0


1,06

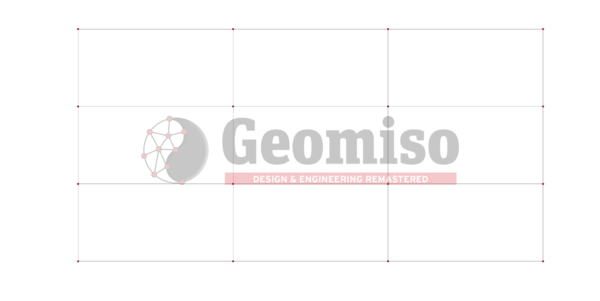

This is the coarsest cubic NURBS surface model of a rectangle (LxH).

Categories: ,
Tags: , ,

Description

This is the coarsest cubic NURBS surface model of a rectangle (LxH).

Specifications
Product ID 220006
Published June 12, 2018
Size 107 KB
Product Type Model
Model NURBS
Degree (ξ) 3
Degree (η) 3
Control Points (ξ) 4
Control Points (η) 4
Control Points 16
Knot Spans (ξ) 1
Knot Spans (η) 1
Elements 1

Files

This pack includes all the following files, which contain the control variables and the knot vectors required to produce the NURBS model using Geomiso or any other NURBS-based software.

  •  PDF file (220006 Rectangle (Cubic) Description.pdf, 60 KB)
  •  Microsoft Excel file (220006 Rectangle (Cubic) Control Variables.xlsx, 11 KB)
  •  Microsoft WordPad file (220006 Rectangle (Cubic) Control Variables.rtf, 1 KB)
  •  Microsoft Notepad file (220006 Rectangle (Cubic) Control Variables.txt, 1 KB)
  •  Images (4 png files, 1920×964 pixels, 34 KB)
