230018 Sphere v1.0



24,19

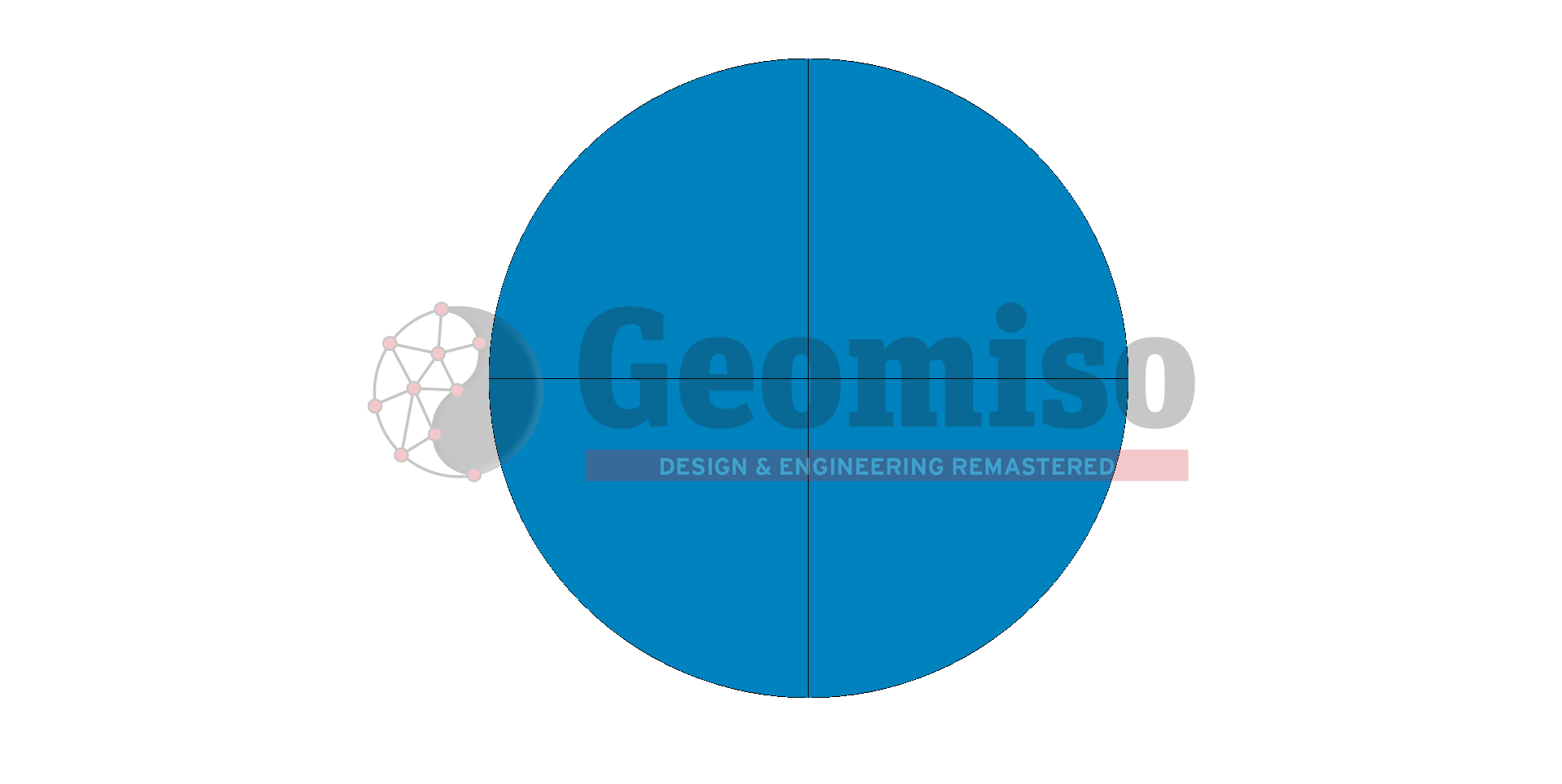

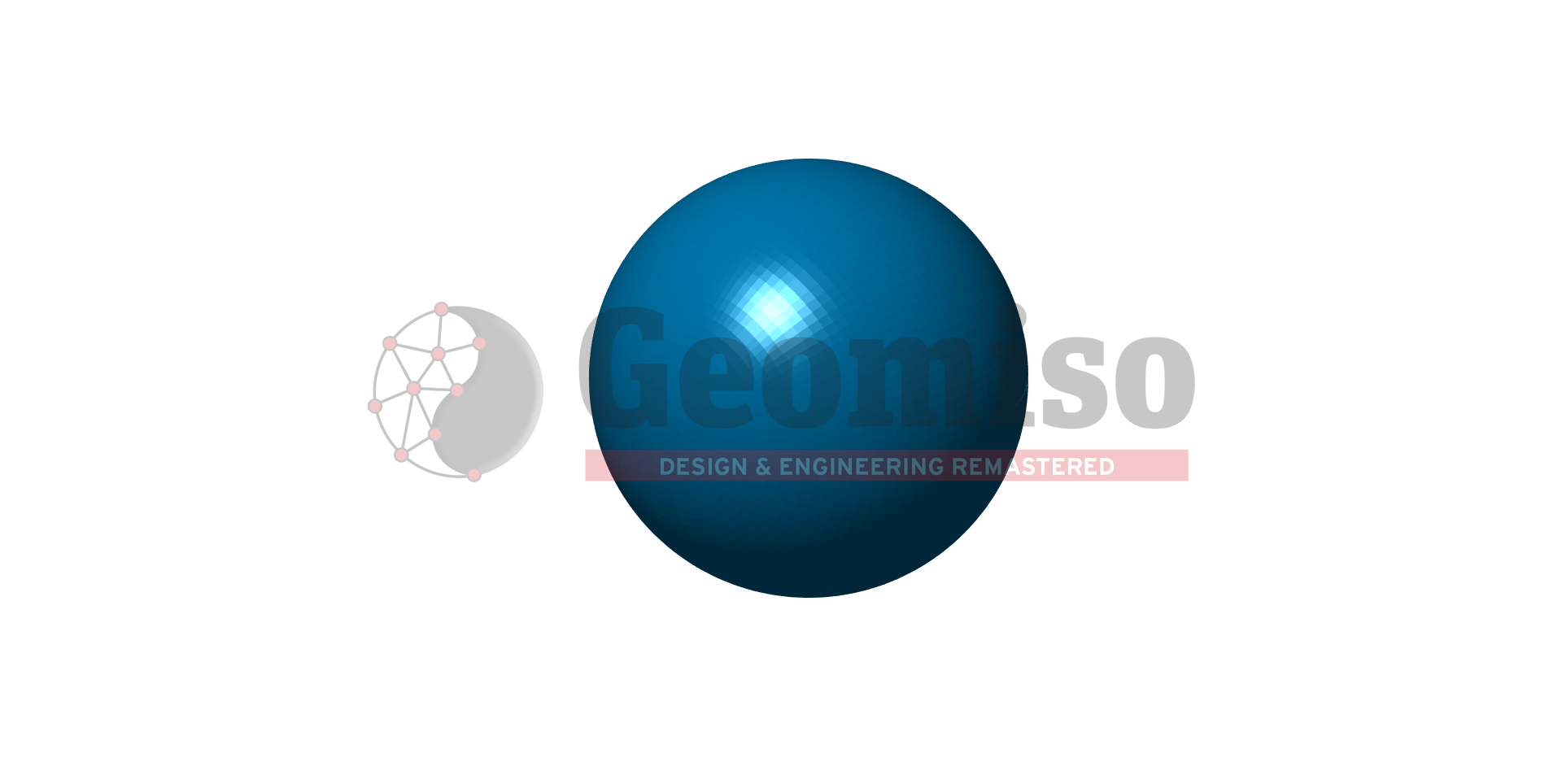

This is the coarsest NURBS solid model of a sphere with radius (R).

Categories: ,
Tags: ,

Description

This is the coarsest NURBS solid model of a sphere with radius (R).

Specifications
Product ID 230018
Published June 17, 2018
Size 941 KB
Product Type Model
Model NURBS
Degree (ξ) 2
Degree (η) 1
Degree (ζ) 2
Control Points (ξ) 9
Control Points (η) 2
Control Points (ζ) 5
Control Points 90
Knot Spans (ξ) 4
Knot Spans (η) 1
Knot Spans (ζ) 2
Elements 8

Files

This pack includes all the following files, which contain the control variables and the knot vectors required to produce the NURBS model using Geomiso or any other NURBS-based software.

  •  PDF file (230018 Sphere Description.pdf, 60 KB)
  •  Microsoft Excel file (230018 Sphere Control Variables.xlsx, 17 KB)
  •  Microsoft WordPad file (230018 Sphere Control Variables.rtf, 4 KB)
  •  Microsoft Notepad file (230018 Sphere Control Variables.txt, 4 KB)
  •  Images (22 png files, 1920×964 pixels, 855 KB)
