230002 Cube (Quadratic) v1.0


2,01

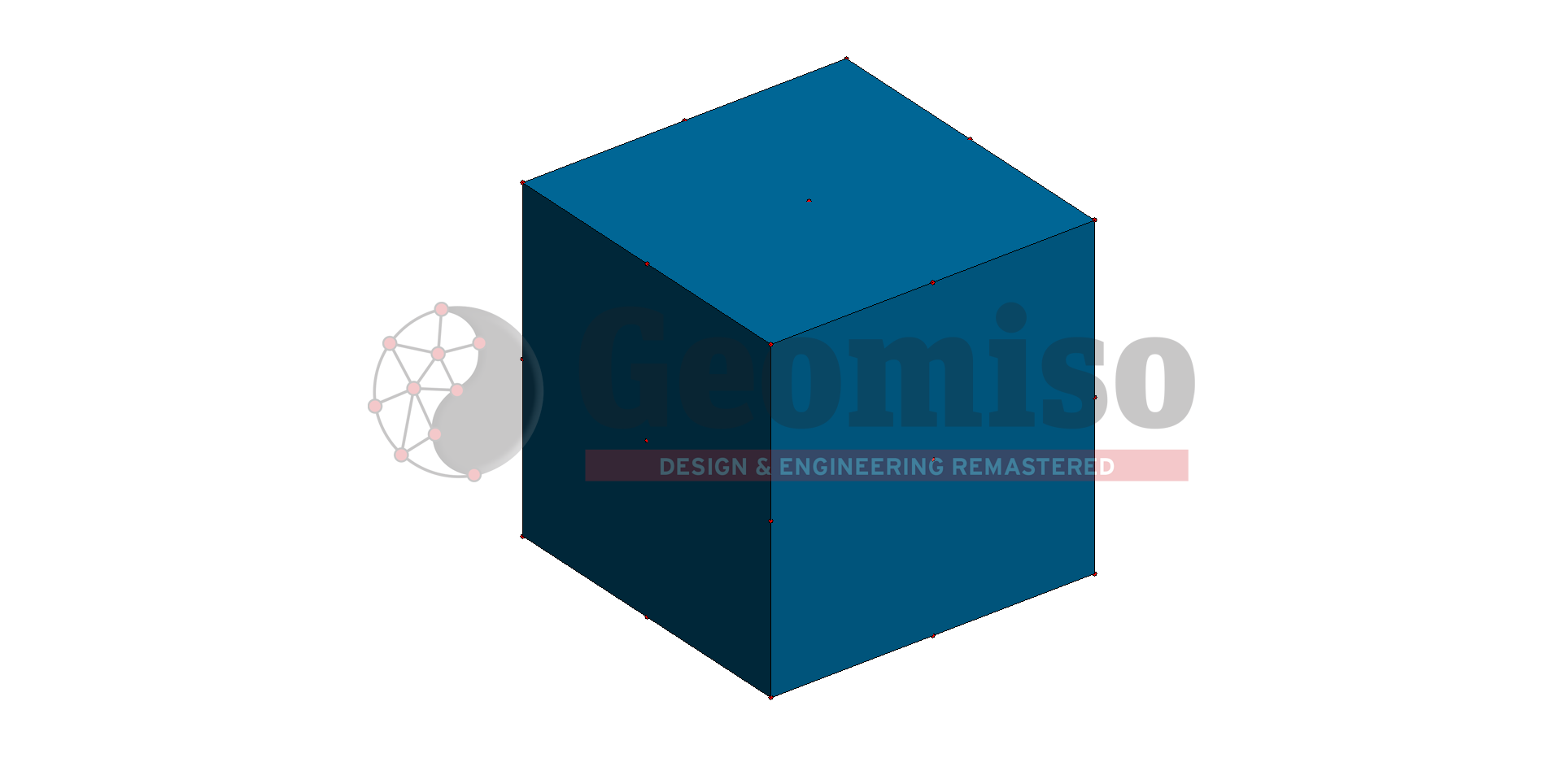

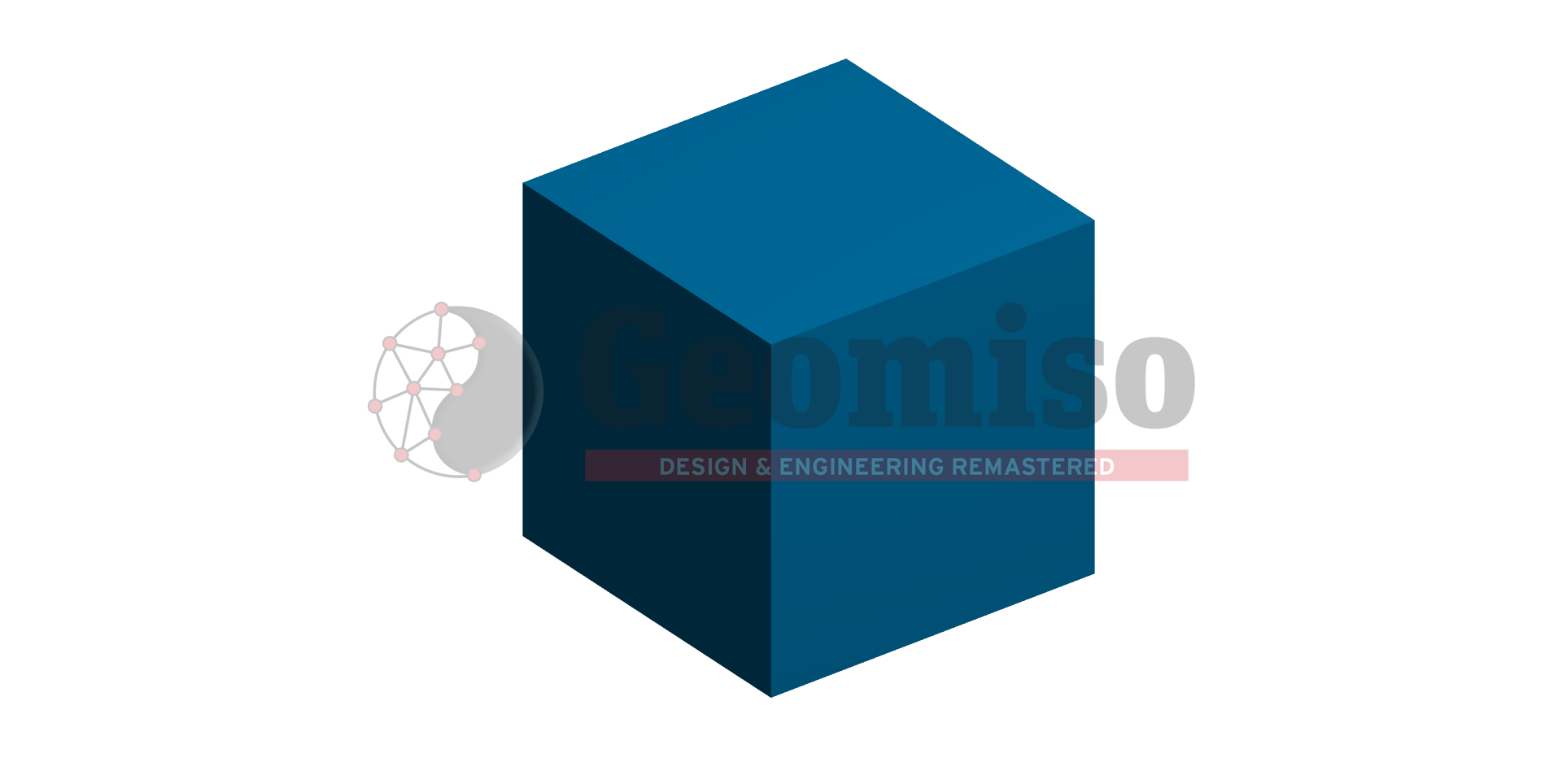

This is the coarsest quadratic NURBS solid model of a cube (LxLxL).

Categories: ,
Tags: , ,

Description

This is the coarsest quadratic NURBS solid model of a cube (LxLxL).

Specifications
Product ID 230002
Published June 17, 2018
Size 373 KB
Product Type Model
Model NURBS
Degree (ξ) 2
Degree (η) 2
Degree (ζ) 2
Control Points (ξ) 3
Control Points (η) 3
Control Points (ζ) 3

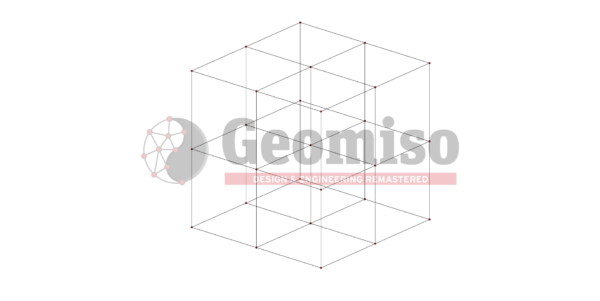

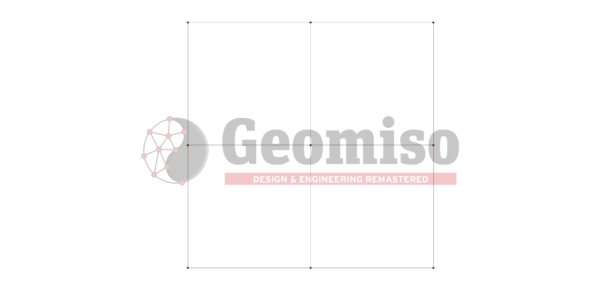

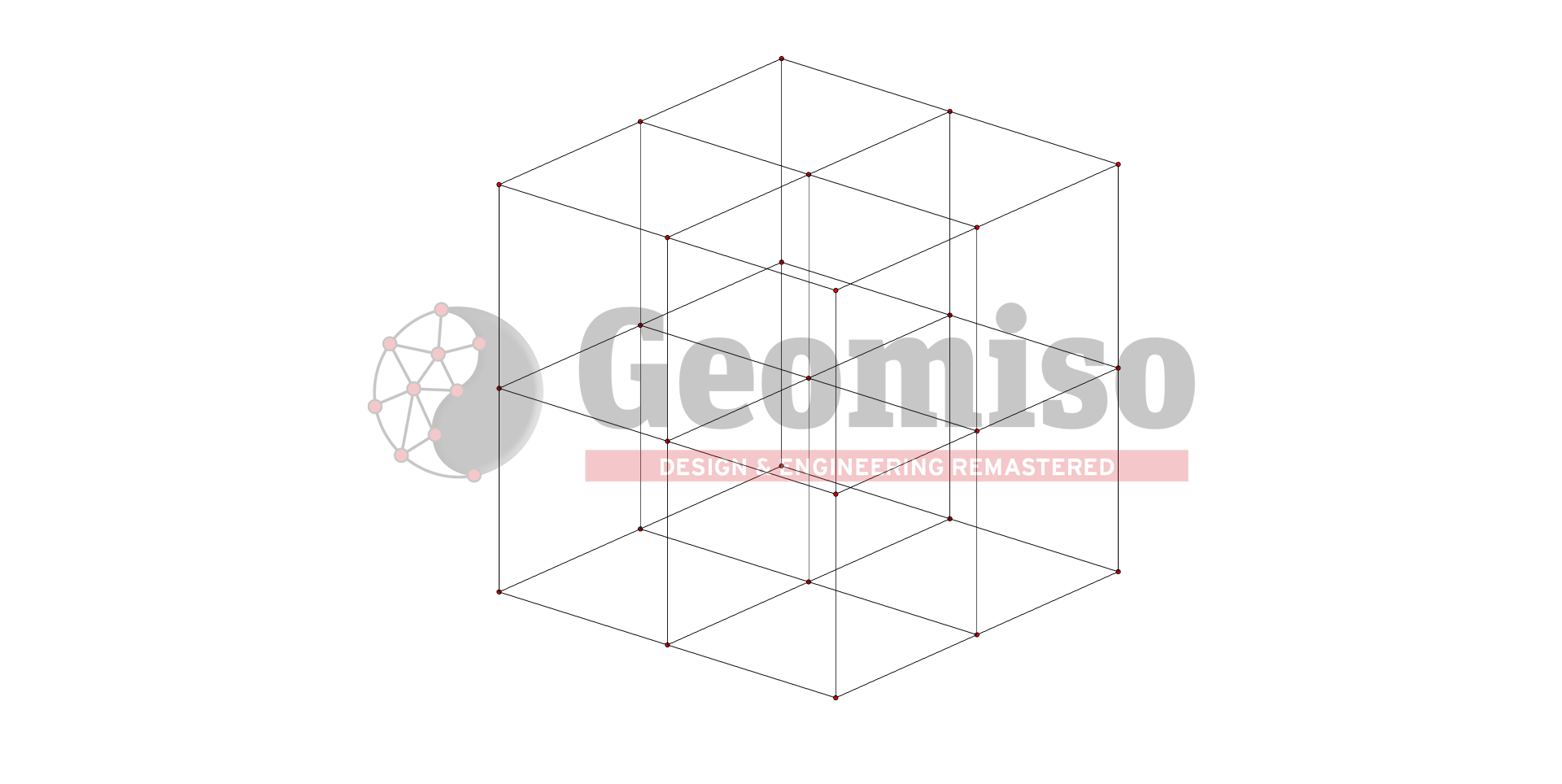

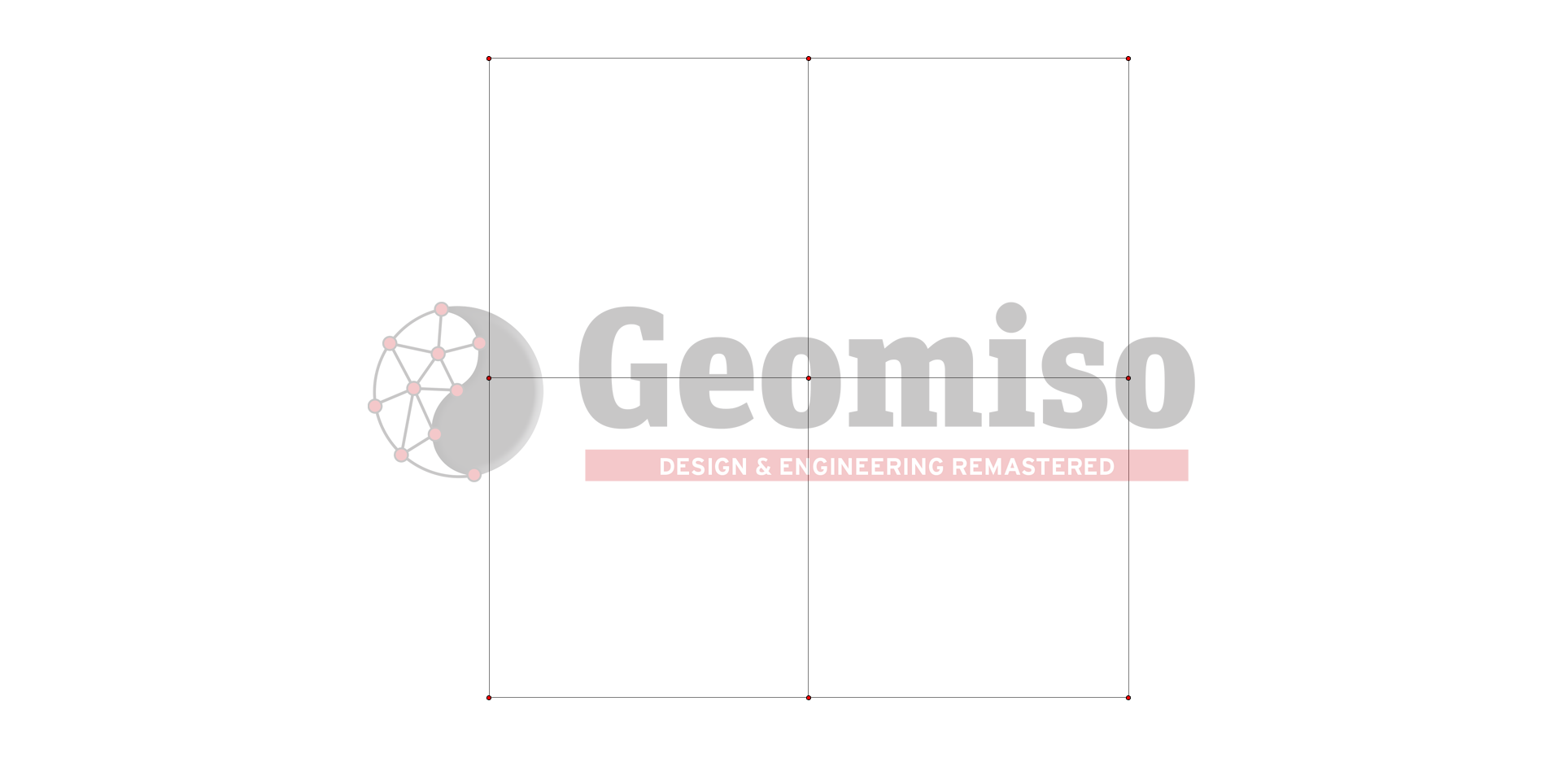

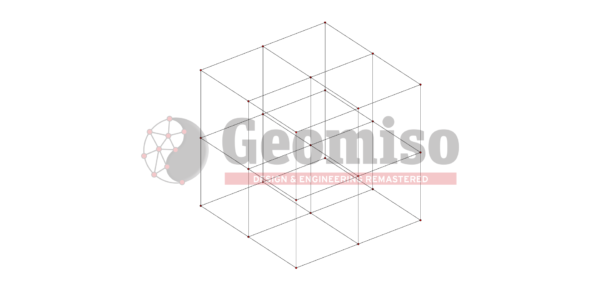

Control Points 27
Knot Spans (ξ) 1
Knot Spans (η) 1
Knot Spans (ζ) 1
Elements 1

Files

This pack includes all the following files, which contain the control variables and the knot vectors required to produce the NURBS model using Geomiso or any other NURBS-based software.

  •  PDF file (230002 Cube (Quadratic) Description.pdf, 60 KB)
  •  Microsoft Excel file (230002 Cube (Quadratic) Control Variables.xlsx, 12 KB)
  •  Microsoft WordPad file (230002 Cube (Quadratic) Control Variables.rtf, 2 KB)
  •  Microsoft Notepad file (230002 Cube (Quadratic) Control Variables.txt, 1 KB)
  •  Images (22 png files, 1920×964 pixels, 298 KB)
