220023 Plate with a hole v1.0


16,12

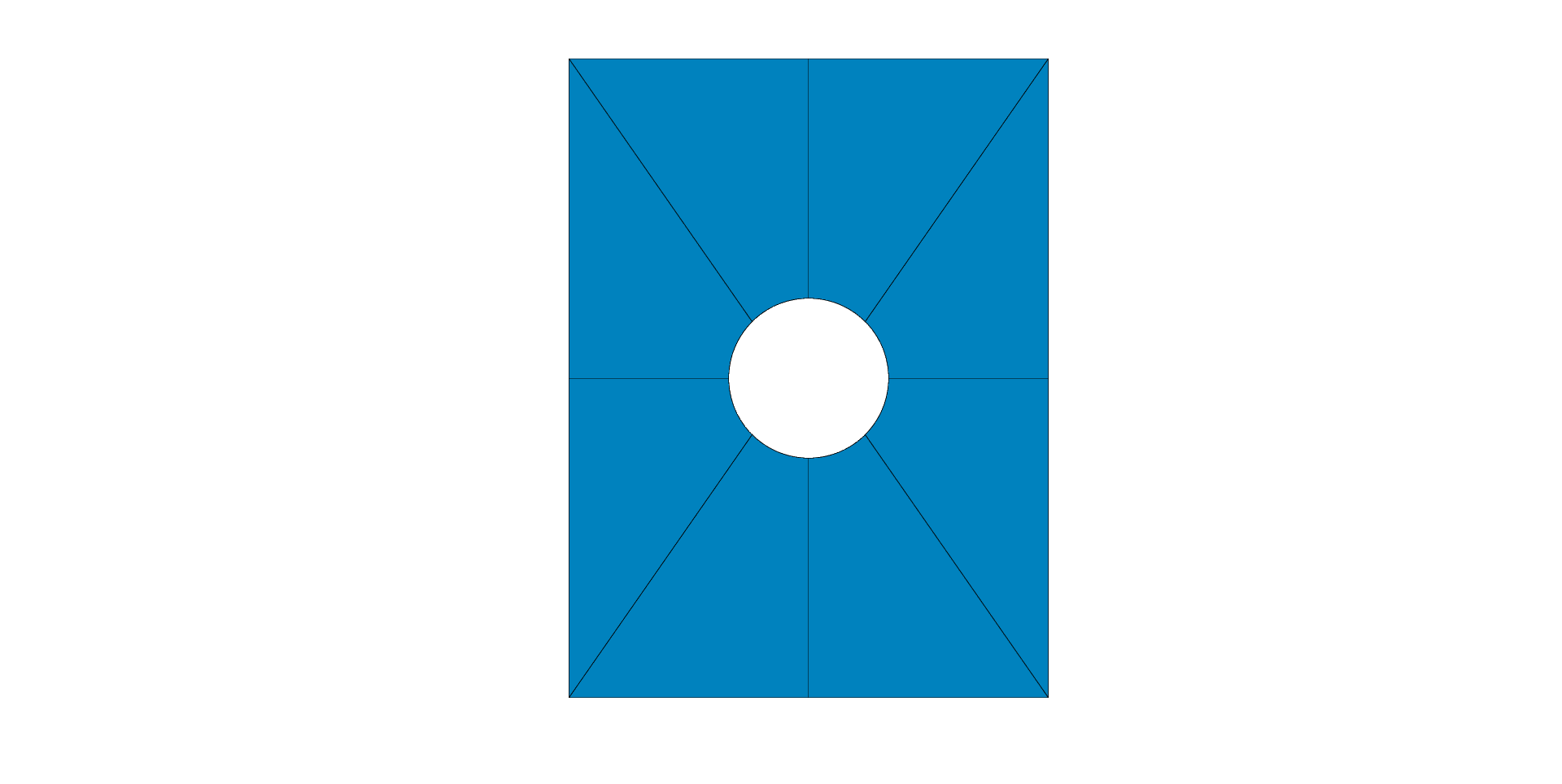

This is the coarsest NURBS surface model of a rectangular plate (L1xL2) with a circular hole in the center (radius R, L1>2R, L2>2R).

Categories: ,
Tags: , ,

Description

This is the coarsest NURBS surface model of a rectangular plate (L1xL2) with a circular hole in the center (radius R, L1>2R, L2>2R).

Specifications
Product ID 220023
Published June 12, 2018
Size 189 KB
Product Type Model
Model NURBS
Degree (ξ) 2
Degree (η) 1

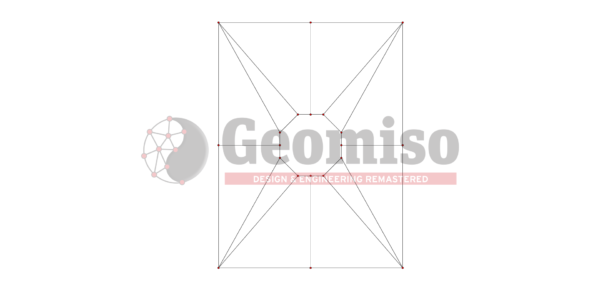

Control Points (ξ) 13
Control Points (η) 2
Control Points 26
Knot Spans (ξ) 8
Knot Spans (η) 1
Elements 8

Files

This pack includes all the following files, which contain the control variables and the knot vectors required to produce the NURBS model using Geomiso or any other NURBS-based software.

  •  PDF file (220023 Plate with a hole Description.pdf, 60 KB)
  •  Microsoft Excel file (220023 Plate with a hole Control Variables.xlsx, 12 KB)
  •  Microsoft WordPad file (220023 Plate with a hole Control Variables.rtf, 2 KB)
  •  Microsoft Notepad file (220023 Plate with a hole Control Variables.txt, 2 KB)
  •  Images (4 png files, 1920×964 pixels, 112 KB)
